DR-J504 Cornell Mattress Durability Tester

DR-J504 Cornell Mattress Durability Tester

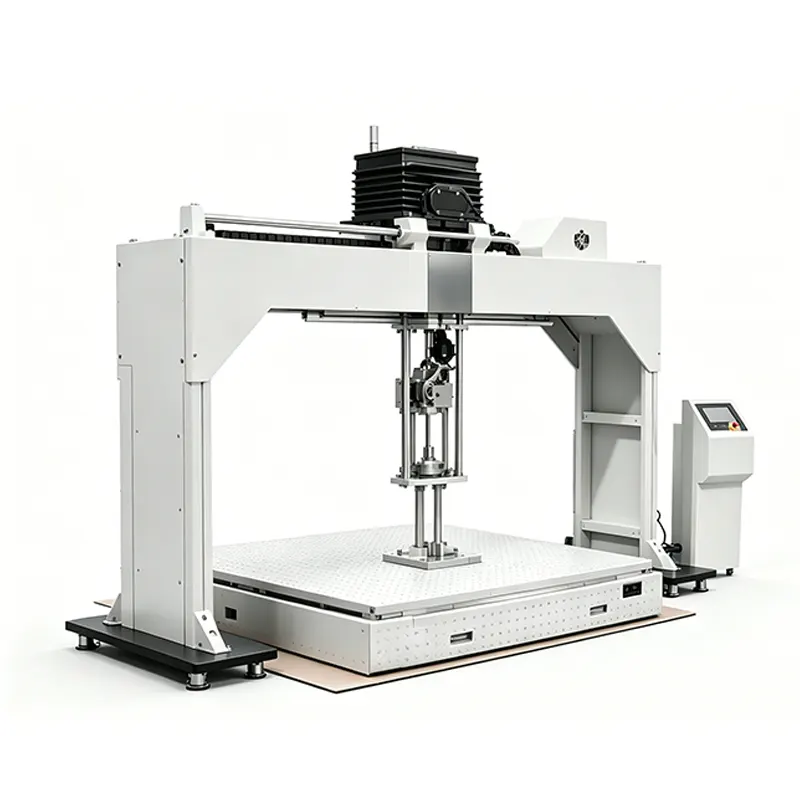

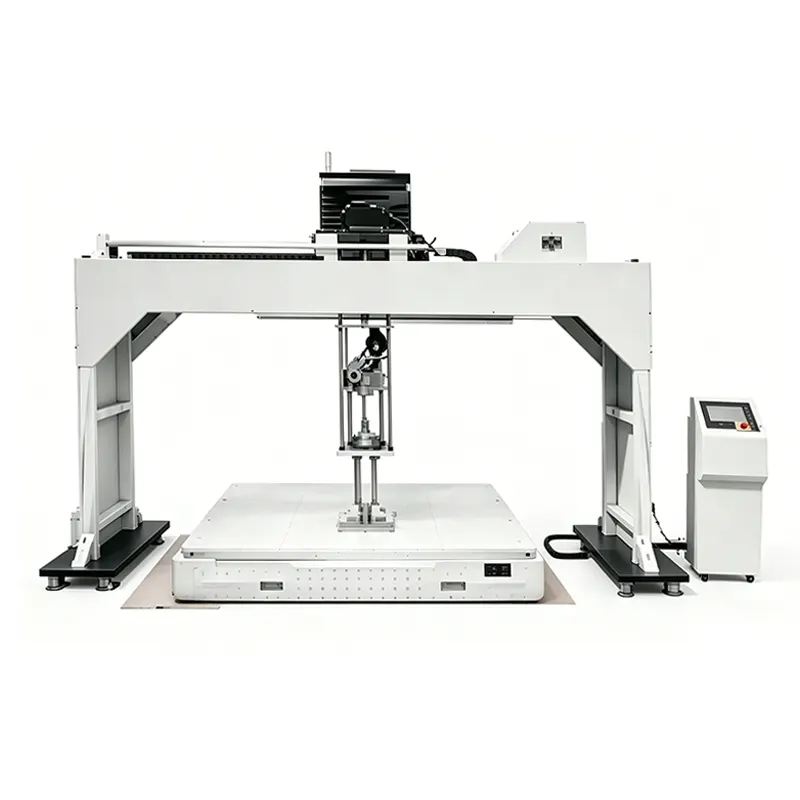

The DR-J504 Cornell mattress durability tester is the industry-standard solution for evaluating mattress long-term performance using the internationally recognized Cornell test method (ASTM F1566). This mattress testing machine applies cyclic loading through a 203mm hemispherical plunger to simulate years of body compression in a fraction of the time.

After test completion, the DR-J504 automatically calculates two critical quality indicators: firmness loss (%) and height loss (%). These objective measurements provide mattress manufacturers, testing laboratories, and certification agencies with the data they need to verify product durability, support quality control decisions, and demonstrate compliance to buyers worldwide.

Key Features

Cornell Test Method (ASTM F1566)

Uses the globally accepted Cornell University test procedure with a precisely machined 203mm (8-inch) diameter hemispherical plunger. This standardized geometry ensures that every Cornell mattress durability tester produces comparable results across laboratories — accepted by major mattress brands, retailers, and certification bodies worldwide.

Automatic Firmness & Height Loss Measurement

Built-in displacement sensors and force gauges automatically record initial and post-test measurements for every mattress firmness test. The system calculates height loss percentage and firmness loss percentage without manual measurement, eliminating operator error and ensuring repeatable, audit-ready test reports.

Programmable Cycle Count (0–999,999)

Set any cycle count to match your target standard or internal specification. The standard Cornell test requires 100,000 cycles, but this mattress durability tester can be programmed for extended durability evaluations up to nearly one million cycles for premium product validation.

Touch-Screen PLC Control

The 7-inch color touch-screen interface allows operators to set load value, cycle count, and test speed in seconds. Real-time display shows current cycle count, applied force, and test status. All data is logged internally and can be exported via USB for compliance documentation — a critical feature for any professional mattress testing machine.

Large Mattress Capacity

Accommodates mattresses up to 2,300 × 2,500mm (king size) on a flat, rigid test surface. The adjustable test platform ensures proper support and alignment regardless of mattress thickness, from slim futons to deep pillow-top designs. Whether you test single mattresses or evaluate an entire product line, the DR-J504 Cornell mattress durability tester handles it all.

Overload Protection & Emergency Stop

Safety systems include automatic overload detection and a physical emergency stop button. These features protect both the test specimen and the operator during extended test runs that may last several days — essential for any mattress durability testing laboratory operating continuous testing schedules.

Technical Specifications

Parameter	Specification
Model	DR-J504
Test Standard	ASTM F1566 / ISO 20957-7 / EN 1957
Plunger Diameter	203mm (8 inches) hemisphere
Load Capacity	Up to 1,000N (adjustable)
Test Speed	Adjustable per standard requirements
Cycle Count	0–999,999 (programmable)
Control Method	PLC + 7″ Color Touch Screen
Power Supply	AC 220V, 50/60Hz, 0.75kW
Machine Dimensions (L×W×H)	2,800 × 2,000 × 1,800mm (approx.)
Net Weight	Approx. 350kg
Mattress Capacity	Up to 2,300 × 2,500mm (king size)
Safety Features	Overload protection, emergency stop
Warranty	2 Years
Lead Time	15–20 Business Days

Applicable Testing Standards

The DR-J504 Cornell mattress durability tester is engineered to perform tests required by the following international and national standards:

Standard	Scope	Key Test
ASTM F1566	Standard test methods for evaluating properties of mattress and foundation systems	Cornell durability test (100,000 cycles)
ISO 20957-7	Furniture — tests — Part 7: test methods for mattresses and upholstered bed bases	Durability and mattress firmness test evaluation
EN 1957	Domestic furniture — mattresses and upholstered bed bases — durability assessment	Height loss and firmness loss measurement

Need to test to a different standard? Contact our engineering team — we customize test fixtures and loading profiles for any specification.

Test Procedure

1. Place the mattress on a flat, rigid test surface and measure the initial thickness at the designated test point using the integrated measurement system.
2. Position the plunger at the center of the mattress surface (or specified test point) and verify alignment per ASTM F1566 requirements.
3. Set test parameters including load value, cycle count (typically 100,000), and test speed on the touch-screen control panel.
4. Start the test — the mattress durability tester automatically applies cyclic loading through the hemispherical plunger and records data throughout the test duration.
5. After completion, the machine measures post-test thickness and calculates Height Loss (%) and Firmness Loss (%) automatically.
6. Generate a test report using exported data per ASTM F1566 requirements for quality control records or third-party certification.

Applications

The DR-J504 Cornell mattress durability tester is used across the furniture and sleep products industry by:

• Mattress manufacturers — Validate new product designs, compare foam and spring configurations, and ensure batch consistency before shipment using this professional mattress testing machine.
• Third-party testing laboratories — Provide certified test reports for buyer compliance requirements, retail certification programs, and import inspections.
• Government quality inspection agencies — Verify regulatory compliance for domestic market surveillance and import/export certification.
• Universities and research institutes — Support sleep science research, material development studies, and comparative product evaluations.

Why Choose FurnitureTestLab?

As a specialized mattress testing equipment manufacturer with over 15 years of experience, FurnitureTestLab delivers more than just a machine:

• Factory-direct pricing — Professional-grade equipment at manufacturer prices with no distributor markup.
• ISO 9001 & CE certified — Quality management system ensures every mattress testing machine meets stringent production standards.
• 2-year warranty included — Every DR-J504 ships with a comprehensive 2-year warranty covering parts, sensors, and control electronics.
• 15–20 day lead time — Standard models ship within 15–20 business days. Custom configurations available with slightly longer timelines.
• Custom fixture design — Non-standard mattress types and special test fixtures available on request.
• Global service network — Remote technical support and spare parts shipping to 50+ countries.
• On-site installation & training — Comprehensive setup and operator training included with every machine.
