MessageDR-J501 Sofa Fatigue Tester

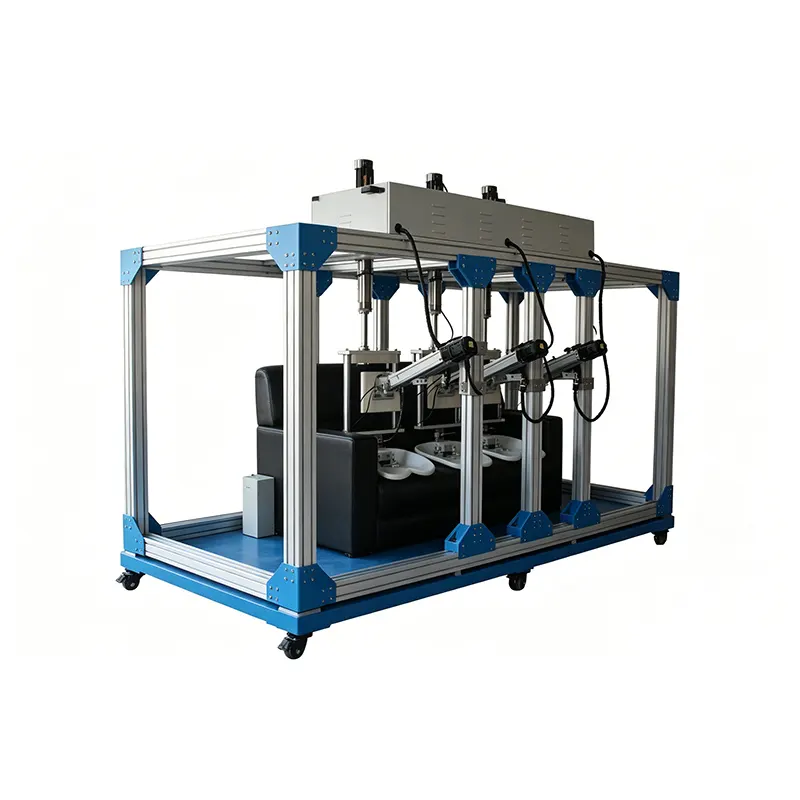

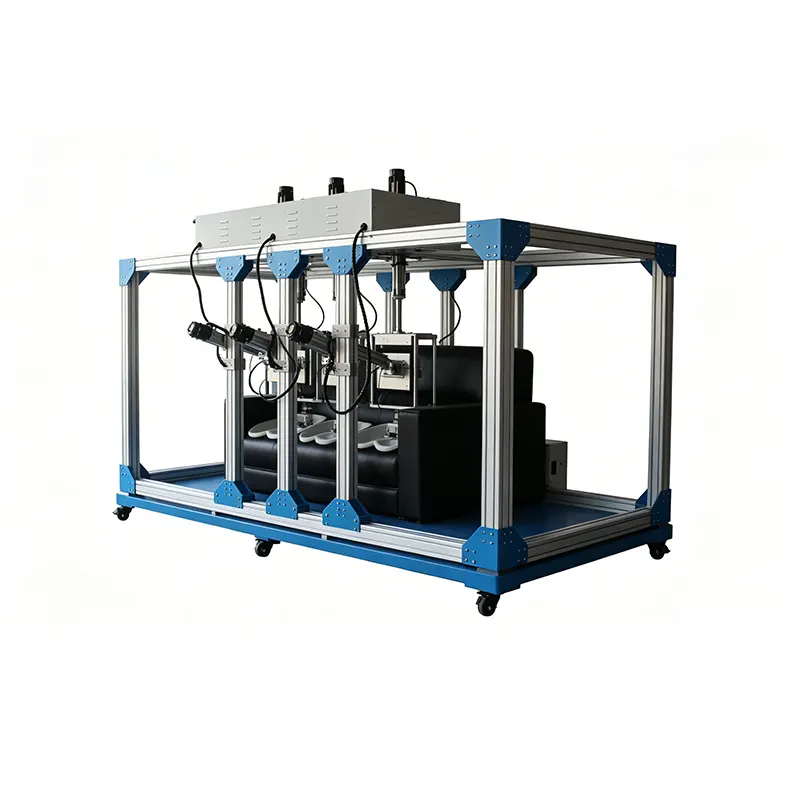

The DR-J501 sofa fatigue tester is a professional testing machine designed to evaluate the long-term durability of two-seat and three-seat sofas under repeated seating loads. By simulating years of daily use in a controlled laboratory environment, this equipment helps furniture manufacturers verify that their products meet BIFMA X5.1, EN 12520, and ISO 7173 standards before they reach the market.
Whether you operate a quality control department, a third-party testing laboratory, or an R&D center, the DR-J501 delivers consistent, repeatable results that form the foundation of your product compliance strategy.
Key Features
Independent Loading Heads for Realistic Simulation
The DR-J501 features three independently controlled loading heads that can be positioned to match actual seating positions on the sofa. Each head applies vertical cyclic loading to a specific seat location, accurately replicating the way real users sit down, shift weight, and stand up — thousands of times over the product lifecycle.
2-Seat and 3-Seat Flexibility
A single machine accommodates both two-seat and three-seat sofas up to 2,500mm in width. Loading heads adjust horizontally and vertically without tools, enabling quick changeover between test configurations.
Programmable Test Cycles (0–999,999)
Set any cycle count up to 999,999 to match the requirements of your target standard. The machine automatically stops at the designated count and logs the total number of completed cycles. This programmability ensures you can test to BIFMA, EN, or custom in-house specifications without hardware modification.
Adjustable Load and Speed
Loading force is adjustable up to 1,000N per head, and test speed can be tuned to match each standard’s prescribed loading rate. This flexibility means one machine covers multiple test protocols — no need for separate equipment for different standards.
Touch-Screen PLC Control
The integrated PLC with color touch screen provides real-time display of test parameters: current cycle count, applied load, test speed, and elapsed time. Operators can start, pause, and resume tests with one touch. All test data is logged and can be exported via USB for compliance reporting.
Pneumatic Loading System
A robust pneumatic system delivers consistent, repeatable loading throughout extended test runs. Unlike hydraulic alternatives, pneumatic actuation eliminates oil leakage risk and reduces maintenance requirements — a critical advantage in continuous-cycle fatigue testing that may run for days.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DR-J501 |
| Applicable Standards | BIFMA X5.1 / EN 12520 / ISO 7173 / QB/T 1952.1 |
| Maximum Loading Force | 1,000N per head (adjustable) |
| Number of Loading Heads | 3 (configurable for 2-seat or 3-seat) |
| Loading Head Stroke | Adjustable |
| Maximum Sofa Width | 2,500mm |
| Cycle Count Range | 0–999,999 (programmable) |
| Test Speed | Adjustable per standard |
| Control System | PLC + 7″ Color Touch Screen |
| Loading Method | Pneumatic |
| Power Supply | AC 220V, 50/60Hz, 1.5kW |
| Machine Dimensions (L×W×H) | 3,500 × 1,800 × 2,000mm (approx.) |
| Net Weight | Approx. 500kg |
Applicable Testing Standards
The DR-J501 sofa fatigue tester is engineered to perform tests required by the following international and national standards:
| Standard | Scope | Typical Test |
|---|---|---|
| BIFMA X5.1 | Office chairs — general requirements | Seat and back durability (cyclic loading) |
| EN 12520 | Domestic seating — strength and durability | Seat fatigue, front edge strength |
| ISO 7173 | Furniture — chairs and stools — strength and durability | Seat and back static/fatigue tests |
| QB/T 1952.1 | Chinese upholstered furniture standard | Comprehensive sofa durability evaluation |
Need to test to a different standard? Contact our team — we customize test fixtures and loading profiles for any specification.
Test Procedure
- Position the sofa on the test platform and secure it with adjustable clamps.
- Adjust loading heads to align with seat center points as specified by the test standard.
- Set test parameters on the touch screen: load value (N), cycle count, and loading speed.
- Start the test — the machine applies cyclic vertical loading automatically. Monitor progress on the real-time display.
- After test completion, inspect the sofa frame, joints, springs, webbing, and upholstery for deformation, cracks, loose connections, or functional failure.
- Generate a compliance report using exported test data.
Applications
The DR-J501 is used across the furniture industry by:
- Furniture manufacturers — Verify sofa durability during product development and before mass production
- Third-party testing laboratories — Provide certified test reports for buyer compliance requirements
- R&D centers — Compare design iterations and material substitutions under controlled fatigue conditions
- Quality control departments — Validate production batches against incoming inspection standards
Why Choose FurnitureTestLab?
As a specialized sofa testing equipment manufacturer with over 15 years of experience, FurnitureTestLab delivers more than just a machine:
- Factory-direct pricing — No middleman markup. You get professional-grade equipment at manufacturer prices.
- Custom fixture design — Standard and custom loading pads to match your specific sofa cushion configurations.
- Installation and training — On-site installation with operator training included.
- Global service network — Remote technical support and spare parts shipping to 50+ countries.
- ISO 9001 & CE certified — Our quality management system ensures every machine meets stringent production standards.
Frequently Asked Questions
What is a sofa fatigue tester?
A sofa fatigue tester is a specialized machine that applies repeated vertical loads to sofa seat surfaces to simulate years of normal use. It measures whether the sofa frame, springs, and upholstery can withstand a specified number of seating cycles without structural failure, as required by international testing standards.
How many cycles should a sofa withstand?
It depends on the standard and product class. BIFMA X5.1 typically requires 100,000 cycles for seat durability. EN 12520 specifies different cycle counts based on the intended use level (domestic light use vs. severe commercial use). The DR-J501 is programmable from 0 to 999,999 cycles, covering all common requirements.
Can this machine test reclining sofas?
The DR-J501 is designed for standard fixed-frame sofas. For recliners, the reclining mechanism requires a different loading approach. Contact us to discuss custom fixture options for recliner testing.
Do you provide different loading pads for different sofa types?
Yes. The DR-J501 ships with standard BIFMA loading pads. We also manufacture custom pad shapes and sizes for specific cushion profiles — firm foam, pocket spring, down-filled, or hybrid cushion configurations.
What is the lead time for a DR-J501?
Standard models ship within 15–20 business days. Custom configurations may require additional time for fixture fabrication. Request a quote for your specific requirements and timeline.
