Controlled Chair Seat Drop and Impact Testing

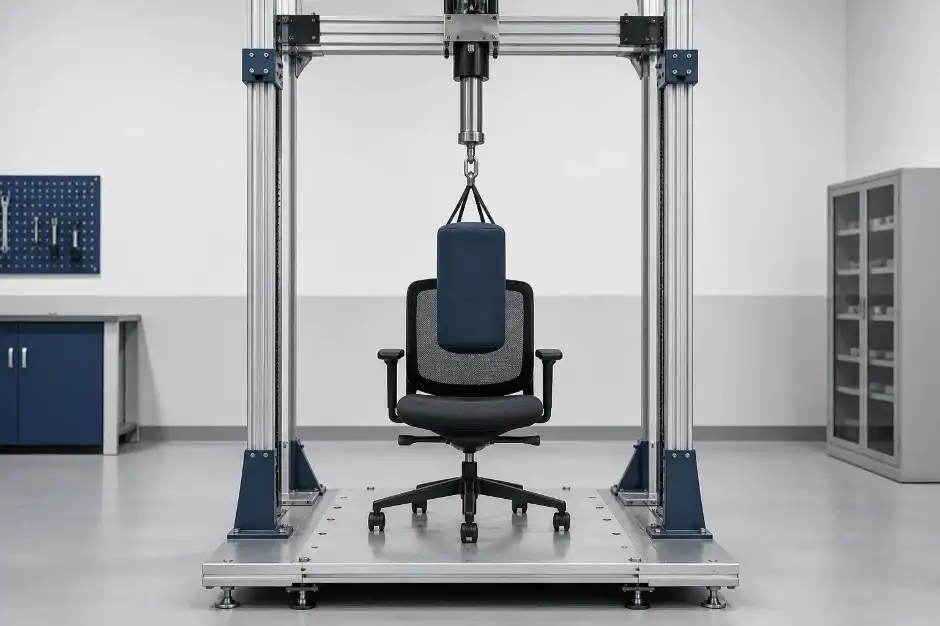

The DR-J607 Chair Drop Impact Tester is designed to apply controlled vertical impacts to a chair seat so laboratories and furniture manufacturers can evaluate structural integrity, seat durability and resistance to sudden loading. The system can be configured around the applicable chair type, test method and standard edition specified by the buyer.
Repeatable Impact Setup
Guided vertical lifting and release help place the impactor consistently over the required seat loading position.
Multiple Test Purposes
Configure the system for applicable functional, proof or repeated-impact durability procedures after the target standard is confirmed.
Laboratory Safety
Stable specimen positioning, guarded moving parts and controlled release are central to safe repeated impact testing.
1. What the DR-J607 Evaluates
A chair may survive ordinary static loading yet fail when a user sits down abruptly or repeatedly drops onto the seat. The DR-J607 reproduces this vertical impact condition in a controlled laboratory setup. It helps identify failures such as seat-pan cracking, mechanism deformation, fastener loosening, weld damage and loss of chair-height function.
This product is intended for chair seat drop and impact evaluation. It is not a substitute for dedicated swivel, caster/base fatigue, stability or combined seat-and-back cyclic testing. Those functions require the corresponding chair-testing fixtures or machines.
2. Typical Test Workflow
1. Confirm the Method
Select the chair type, target market, standard designation, edition and required impact procedure.
2. Position the Chair
Set the chair height and base orientation as required, then secure or restrain only the components permitted by the method.
3. Align the Impactor
Center the specified impact device over the prescribed seat loading point and confirm the release height.
4. Run the Test
Perform the required single drop or programmed impact sequence while monitoring cycle completion and abnormal movement.
5. Inspect the Sample
Check the seat, mechanism, column, base, fasteners and adjustment functions against the acceptance criteria.
6. Record the Result
Document the configuration, impactor, settings, observations, failure cycle and post-test condition.
3. Key Equipment Functions
- Guided vertical impact path: keeps the impact device aligned with the specified seat position.
- Adjustable test geometry: accommodates the approved range of chair heights and seat positions after configuration confirmation.
- Controlled lifting and release: supports repeatable setup for single-drop and applicable cyclic impact procedures.
- Cycle control: records and stops at the programmed test count where the selected configuration supports repeated impact.
- Specimen restraint: prevents unintended sliding without masking the structural response required by the method.
- Emergency protection: allows the operator to stop the moving system when an abnormal condition occurs.
4. Configuration to Confirm Before Quotation
| Configuration Item | Information Required from Buyer |
|---|---|
| Target standard | Standard designation, publication year/edition and required test item |
| Chair types | Office chair, visitor chair, stool or other seating construction |
| Sample envelope | Minimum/maximum seat height, seat width and overall chair dimensions |
| Impact program | Single-drop, proof-load or repeated-impact procedure required |
| Impactor | Required impact device type and mass defined by the selected method |
| Control and records | Cycle-only control or additional test records/report output |
| Site utilities | Available electrical supply and compressed-air specification |
| Safety options | Guarding, enclosure, interlock or laboratory-specific requirements |
5. Applicable Standards
The DR-J607 is intended for chair drop and seating-impact procedures associated with ANSI/BIFMA chair test programs. Because requirements and section numbering change between editions, Derui should verify the exact standard and test item before the machine configuration is finalized.
If your laboratory also tests European or ISO seating methods, send the complete standard designation and edition for fixture and procedure review. Do not assume that one impactor or one setting automatically covers every standard.
6. How to Choose a Chair Drop Impact Tester
- Confirm that the lifting range covers the required chair seat heights and drop positions.
- Verify that the supplied impactor matches the exact standard edition.
- Check how the chair is restrained and whether swivel bases or casters require special positioning.
- Ask how the machine detects incomplete cycles, sample movement and emergency conditions.
- Confirm which settings and results can be recorded for your laboratory report.
- Request calibration documentation only for quantities the machine actually measures.
7. Frequently Asked Questions
What is a chair drop impact tester used for?
It applies a controlled vertical impact to a chair seat to evaluate how the seat, mechanism, column, base and connections withstand sudden or repeated loading.
Can the DR-J607 run both single-drop and repeated-impact tests?
The final capability depends on the selected impactor, lifting system and control configuration. Send the required standard and procedure so Derui can confirm the correct setup.
Is the DR-J607 the same as a chair durability tester?
No. It focuses on vertical drop and impact loading. Seat-and-back cyclic durability, swivel durability, base fatigue and stability are different tests that may require other equipment.
What information is needed for a quotation?
Provide the chair type, standard and edition, required test item, sample dimensions, impact program, available utilities and reporting requirements.
8. Related Chair Testing Equipment
- DR-J609 Chair Seat & Back Durability Tester
- DR-J605 Chair Base Fatigue Tester
- DR-J603 Chair Vertical Pressure Tester

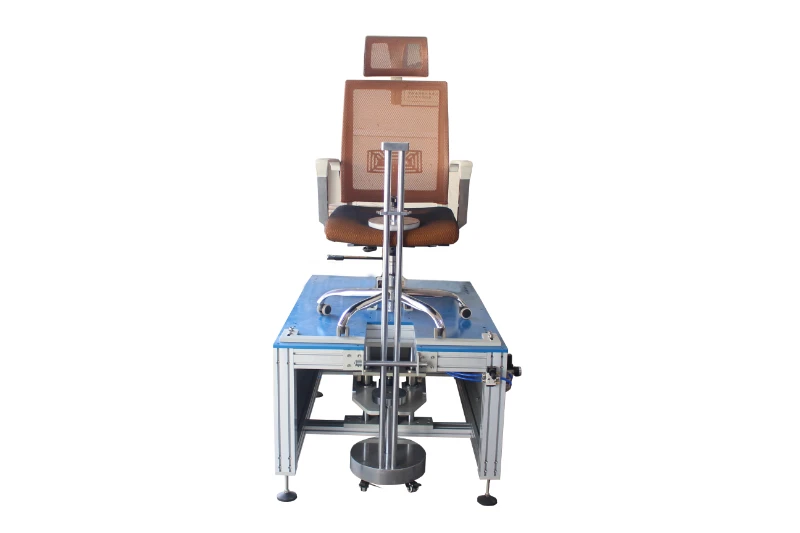

- DR-J608 Chair Stability Tester
- Chair Testing Equipment
- BIFMA X5.1 Chair Testing Guide
Configure the DR-J607 for Your Chair Test Method
Send the chair type, target standard and edition, required impact test, sample dimensions and laboratory utilities. Derui’s engineering team will review the appropriate fixture and control configuration.
